8 Most Common Types of Dredgers and Their Applications

8 Most Common Types of Dredgers and Their Applications

Dredging is a far more nuanced process than simply dragging a large bucket across the bottom of a river or body of water. Because no two projects are the same, there are a wide variety of dredgers that have unique features that allow them to be used in unique situations. In this blog post, we examine the eight most common types of dredgers and their unique applications.

The 8 Most Common Types of Dredgers and Their Applications

  1. Cutter Suction Dredger
  2. Trailing Suction Hopper Dredger
  3. Excavator Dredgers (Backhoe Dredger)
  4. Grab Dredger (Clamshell Dredger)
  5. Bucket Ladder Dredger (Sand Dredger)
  6. Suction Dredger
  7. Jet-Lift and Air-Lift Dredgers
  8. Remote Dredging

New call-to-action

1- Cutter Suction Dredger

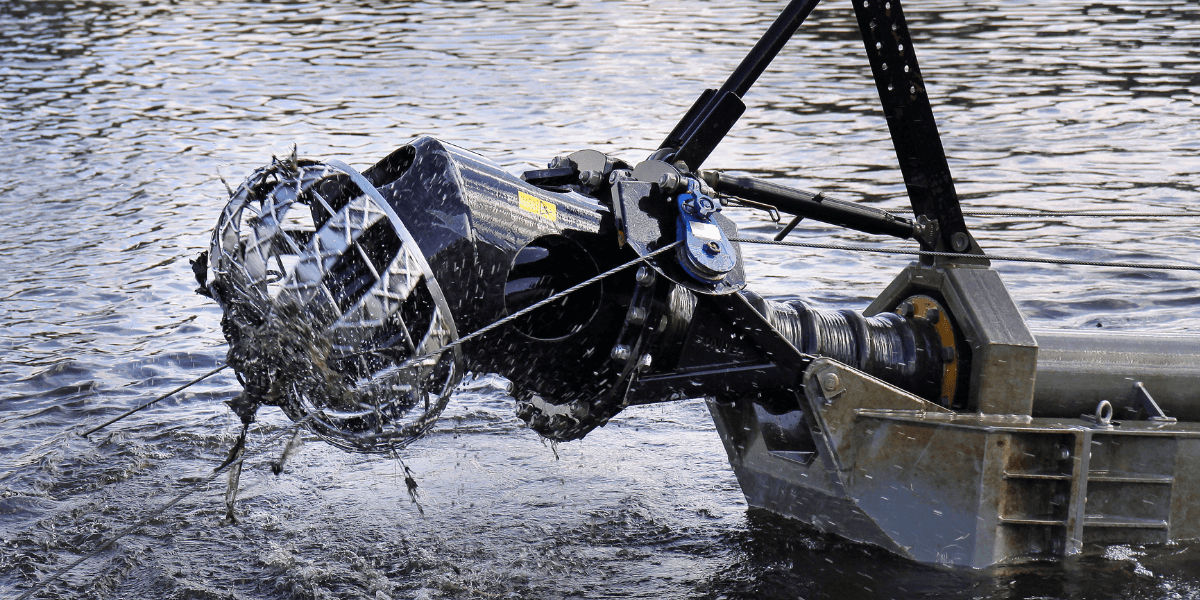

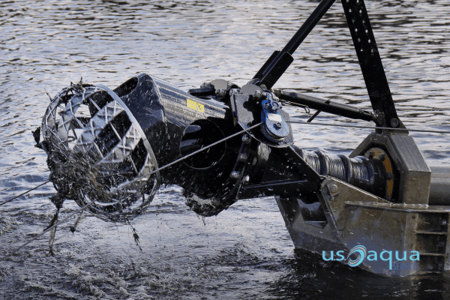

One of the most enduring and versatile dredger designs, the Cutter Suction Dredger (CSD), employs a rotating cutter head at the end of a suction line. This cutter head is typically shaped like a basket and features blades that rotate within it. When the blades make contact with the seabed or riverbed material, they cut and loosen it, allowing the material to be drawn up into a suction tube.

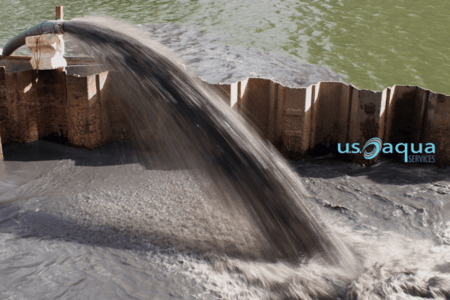

From there, powerful pumps transport the dredged material into a housing or directly through a discharge pipeline to the designated disposal site. These disposal sites can be onshore for land reclamation, offshore for creating new landforms, or to a barge for further transport.

Cutter Suction Dredgers are highly adaptable, as they can be equipped with a variety of blades and scoops designed to handle different types of materials, ranging from soft silt and sand to hard clay and rock.

This makes them ideal for a wide range of applications including deepening navigation channels, maintaining harbors and ports, mining underwater minerals, conducting environmental remediation, and controlling floods by increasing water bodies' capacity. The precision and efficiency of CSDs, combined with their ability to manage large volumes of material, make them indispensable in marine engineering and hydraulic projects.

2- Trailing Suction Hopper Dredger

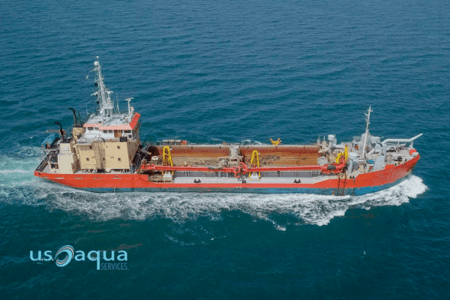

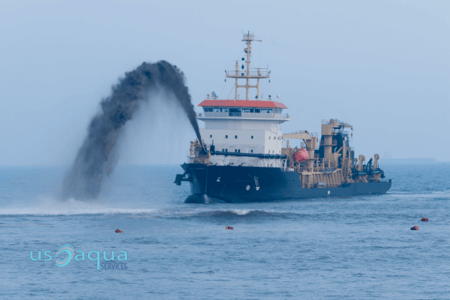

A Trailing Suction Hopper Dredger (TSHD) is a self-propelled vessel equipped with powerful suction pipes that extend to the seabed, making it one of the most efficient and widely used dredger types in the industry. These dredgers are designed to handle loose and soft materials such as sand, gravel, and silt.

The suction pipes, equipped with dragheads, are lowered to the seabed where they vacuum up the material and transport it into the vessel's hopper, a large storage compartment within the hull. Once the hopper is full, the vessel sails to the disposal site where the material is released through bottom doors or pumped out via pipelines.

The versatility of TSHDs makes them suitable for a variety of dredging operations. They are commonly used for maintaining navigational channels, ensuring safe passage for commercial and recreational vessels by removing sediment buildup.

TSHDs are also essential in land reclamation projects, where dredged material is used to create new landforms or restore eroded coastal areas. Additionally, these dredgers play a crucial role in port construction and maintenance, keeping ports functional and accessible by deepening and widening harbor basins. Their ability to operate in rough sea conditions further enhances their utility in offshore dredging activities.

3- Excavator Dredgers (Backhoe Dredger)

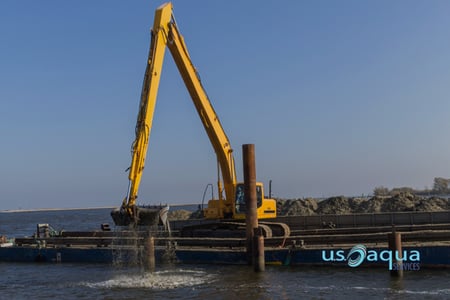

For projects that demand the rapid movement of large quantities of material, an excavator dredger is the ideal solution. This type of dredger operates much like a land-based excavator, using a robust bucket fitted with a series of teeth or scrapers along one edge. These teeth are designed to break into and scoop up various materials, including compacted soil, sand, and even heavy rocks.

Excavator dredgers are particularly useful in confined or shallow areas where other types of dredgers may struggle to operate. They excel in precision dredging tasks, such as clearing dock basins, constructing and maintaining marina facilities, and performing underwater construction work. The ability to accurately position the bucket and apply significant force allows these dredgers to perform detailed and robust excavation tasks.

Additionally, their adaptability to various site conditions and material types makes them invaluable for a wide range of dredging projects. The mechanical nature of the excavation process ensures a consistent and controlled removal of material, which is crucial for maintaining the stability of underwater structures and ensuring navigable waterways.

4- Grab Dredger (Clamshell Dredgers)

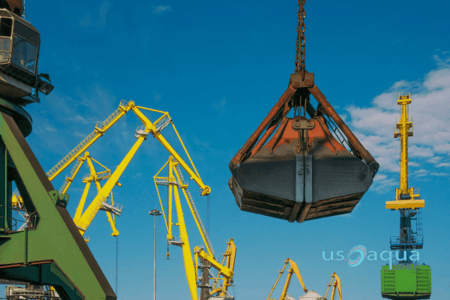

The clamshell dredger operates with a distinctive bivalve grabbing system suspended from a crane, which is controlled either by cables or hydraulic cylinders. Resembling a giant mouth suspended from a long tether, this dredger methodically excavates materials from the bottom of water bodies.

Equipped with two hinged buckets resembling the halves of a clamshell, the dredger descends to the seabed or riverbed. The clamshell buckets are lowered open and then closed to grip and lift material, ensuring efficient excavation. This action is facilitated by the crane's lifting capacity, allowing the dredger to handle various sediment types, from loose sand to compacted clay and debris.

Clamshell dredgers are employed in a wide range of dredging applications, including harbor maintenance, construction projects, and environmental remediation. Their ability to precisely target and remove specific volumes of material makes them particularly useful in shaping and maintaining navigational channels and berthing areas. The controlled deposition of dredged material onto barges or holding tanks ensures efficient transport and disposal, supporting sustainable dredging practices.

5- Bucket Ladder Dredgers (Sand Dredger)

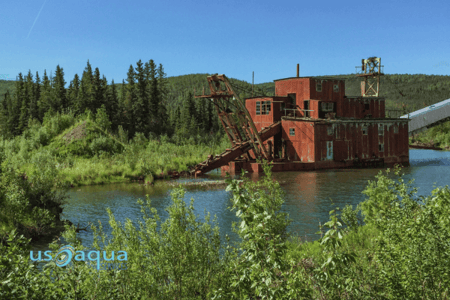

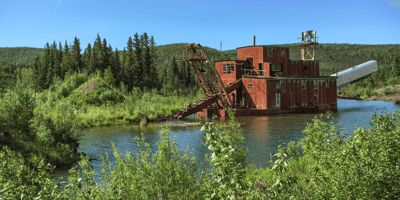

Essentially functioning like a giant conveyor belt, a bucket ladder dredger is an effective and reliable dredging system that utilizes a continuous chain and bucket mechanism. This type of dredger operates by lowering a series of buckets attached to a chain to the bottom of a river or water body. The buckets, equipped with sharp edges or teeth, scoop up the sediment, gravel, and other materials from the bottom as the chain system rotates.

Bucket ladder dredgers are especially advantageous for projects requiring the excavation of compacted or heavy materials. Their robust construction and powerful scooping action make them ideal for removing stubborn sediments, clay, and even large rocks from the seabed or riverbed. These dredgers are commonly used in harbor and port construction, canal maintenance, and mining operations where precise and efficient material removal is essential.

One of the key benefits of bucket ladder dredgers is their ability to maintain a consistent and controlled dredging depth. This precision ensures that the dredged area is uniform, which is crucial for creating stable foundations for underwater structures and maintaining navigable waterways. Additionally, the continuous operation of the bucket ladder system minimizes downtime, increasing the overall efficiency of the dredging process.

6- Suction Dredger

When a project requires the removal of vast quantities of loose materials such as soil, silt, and fine gravel, suction dredgers are the ideal choice. These powerful machines utilize a hydraulic system to draw materials up through a specialized attachment, functioning much like a giant household vacuum cleaner. This efficiency and simplicity make suction dredgers indispensable in various dredging operations.

Suction dredgers operate by creating a vacuum that draws sediment and debris from the bottom of water bodies through a suction pipe. The hydraulic system generates the necessary force to lift the material from the seabed or riverbed and transport it to a designated holding area or directly onto a barge for removal. This process ensures the effective and rapid excavation of large volumes of material, making suction dredgers highly efficient for projects with loose sediments.

Additionally, suction dredgers are widely used in maintaining and deepening navigational channels, ensuring safe passage for vessels by removing silt and sediment buildup. They are also employed in land reclamation projects, where large volumes of sand and silt are required to create new landforms or restore eroded coastlines. The agricultural industry benefits from suction dredgers as well, utilizing them to clear irrigation channels and maintain water management systems.

7- Jet-Lift and Air-Lift Dredgers

In the diverse world of dredging equipment, Jet-Lift and Air-Lift dredgers stand out as innovative solutions tailored for specific dredging needs. These dredgers utilize unique methods to lift and transport sediment, making them indispensable in various underwater excavation projects. Understanding how these dredgers operate and their applications can help in selecting the right equipment for specific dredging tasks.

Jet-Lift Dredgers

Jet-Lift dredgers employ high-pressure water jets to create a suction effect that lifts sediment from the seabed or riverbed. The water jets are directed into a specially designed nozzle or intake pipe, generating a vacuum that draws in the sediment along with the water. This mixture is then transported through a pipeline to the desired disposal site or holding area.

Jet-Lift dredgers are commonly used in maintenance dredging of harbors, ports, and navigational channels where sediment accumulation can hinder vessel movement. They are also employed in beach nourishment projects, where large volumes of sand need to be relocated to restore eroded coastlines. Additionally, these dredgers are useful in environmental remediation efforts, such as removing contaminated sediments from water bodies to improve water quality.

Air-Lift Dredgers

Air-Lift dredgers operate on a different principle, using compressed air to lift and transport sediment. In this system, compressed air is injected into a submerged pipe, creating a flow of air bubbles that rise through the pipe. As these bubbles ascend, they reduce the density of the water-sediment mixture inside the pipe, causing the material to be lifted to the surface through buoyancy.

Air-Lift dredgers are widely used in underwater construction projects, such as laying pipelines and cables, where precise sediment removal is necessary. They are also effective in scientific research operations, where sediment samples need to be collected from deep ocean floors without contamination. Furthermore, Air-Lift dredgers are valuable in salvage operations, helping to uncover and retrieve sunken objects or debris from the seabed.

8- Remote Dredging (Autonomous Dredgers)

Remote or autonomous dredgers represent a cutting-edge innovation in the dredging industry, revolutionizing how underwater excavation and construction projects are managed. These unmanned machines are controlled by sophisticated computer systems, making them ideal for tasks that are environmentally sensitive or hazardous for human operators.

Equipped with a suite of advanced attachments such as cameras, sonars, and sensors, autonomous dredgers operate autonomously while ensuring safe interaction with their surroundings. These technologies enable them to accurately map the seabed or riverbed topography and identify specific materials that require removal. By leveraging real-time data and environmental feedback, autonomous dredgers optimize their operations for efficiency and precision.

The deployment of autonomous dredgers is particularly advantageous in the construction and maintenance of marine infrastructure, including port facilities and coastal defenses. These dredgers autonomously navigate through designated areas, performing dredging tasks without human intervention. This capability not only enhances operational flexibility but also extends operational hours, as autonomous dredgers can work continuously without the need for breaks or shift changes.

U.S. Aqua The Right Dredger For Your Dredging Project

Selecting the right dredger for your project can be a daunting task given the variety of options available. At U.S. Aqua Services, we simplify this process by offering a comprehensive range of dredge rentals and equipment tailored to fit any project size. Our equipment is designed with mobility, reliability, durability, and safety in mind, ensuring you have the best tools for the job.

For those who prefer a DIY approach, we provide top-notch dredging equipment rentals for projects ranging from backyard pond maintenance to large-scale sand dredging. Our team is here to support and guide you every step of the way, ensuring your project's success.

No matter the scale or scope of your dredging needs, U.S. Aqua Services is here to help. Contact us today to find out how we can assist with your next project!
