5 Types of Fat Truck Models

5 Types of Fat Truck Models

Recently, Zeal Motor Inc. announced the official launch of their five new Fat Truck models. Each type has its own set of benefits and unique features. In order to find the best Fat Truck for your needs, it is important to understand the different specifications of each.

Let's evaluate the details of all the new models and everything you need to know about them.

  1. What is the new Fat Truck 2.4 Pickup?
  2. What is the Fat Truck 2.8 Wagon?
  3. What is the Fat Truck 2.8 Pickup?
  4. What is the new Fat Truck 8x8 Hauler?
  5. What is the new Fat Truck 8x8 Wagon?

New call-to-action

What is the new Fat Truck 2.4 Pickup?

The new Fat Truck 2.4 Pickup stands out as a formidable off-road utility vehicle, adept at transporting personnel and materials across challenging terrains. It boasts a payload capacity of 2000 lbs. and can comfortably seat four passengers.

This amphibious vehicle reaches speeds of up to 19 mph on land and 3.1 mph on water, and its ability to handle steep gradients and sidehills makes it exceptionally agile in difficult conditions.

2.4P Dimensions



Fat Truck 2.4 Pickup Features

Engine and Performance

The Fat Truck 2.4 Pickup is equipped with a HATZ 3H50TICD 3-cylinder engine, delivering 56 horsepower and 136 lb-ft of torque. The hydrostatic transmission provides smooth and responsive handling, complemented by a large fuel tank ensuring prolonged usage.

Safety and Control

Safety is a key feature, meeting ISO 3471 ROPS and EPA Tier 4 Final/Stage V emission standards, and the vehicle is equipped with intuitive joystick steering and a color display.

Design and Customization

Its compact dimensions, significant ground clearance, and standard equipment like operator seats with safety belts, comprehensive lighting, and essential safety gear make it highly functional. Additionally, a wide array of optional equipment, from winches and heaters to customizable colors and lighting options, allows for personalization according to specific needs.

This combination of features makes the Fat Truck 2.4 Pickup an ideal choice for various industries that demand reliable and versatile off-road transportation, including construction, agriculture, and emergency services​.

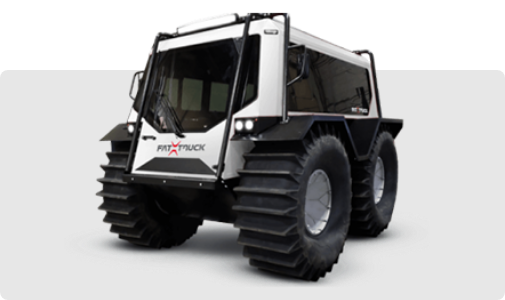

What is the Fat Truck 2.8 Wagon?

The Fat Truck 2.8 Wagon represents the evolution of its predecessor, the 2.8C, boasting a remarkable 11% power increase and over 40 new and enhanced features. Notable improvements include impact-resistant windshields for heightened safety, an upgraded ergonomic and quieter cab, and the introduction of Power Take Off capabilities.

It has an impressive payload capacity of 2200 lbs. and can accommodate up to 8 passengers (2 front + 6 rear). This amphibious vehicle can reach a maximum speed of 25 mph on land and 3.1 mph on water, displaying remarkable agility with its ability to navigate steep uphill and downhill gradients of 35°/70%, and a sidehill of 22°/40%.

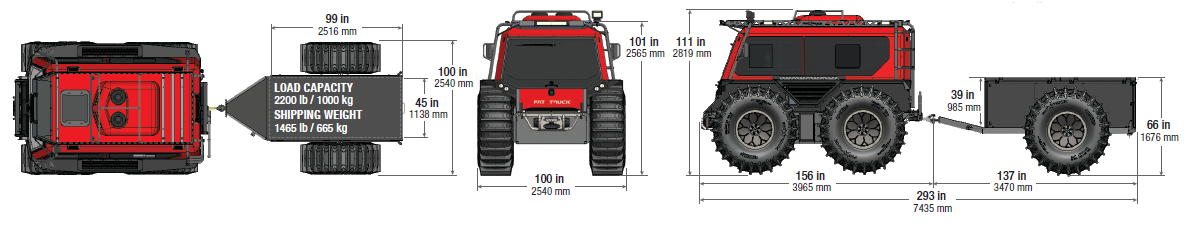

2.8W

Fat Truck 2.8 Wagon Features

Engine and Performance

The vehicle is powered by a Hatz 1.95L Turbo diesel engine, meeting EPA Tier 4 Final EU Stage V emission standards. It delivers 74 horsepower at 2300 RPM and a torque of 180 lb-ft at 1600 RPM. The Fat Truck 2.8 Wagon's engine is complemented by a hydrostatic transmission with a carbon fiber synchronous belt, ensuring reliable performance in diverse conditions.

Safety and Control

In terms of safety, the Fat Truck 2.8 Wagon adheres to the ISO 3471 ROPS and EPA Stage V, equipped with an automatic safety brake system. The controls are managed by a microprocessor with joystick steering and a color display, enhancing the ease of operation.

Design and Customization

The vehicle stands tall with a height of 101 inches, a length of 146.5 inches, and a width of 100 inches, coupled with a ground clearance of 20.7 inches. Its standard equipment includes lockable doors, front seats with 3-point seat belts, comprehensive lighting, electric horn, and safety essentials like fire extinguishers and first aid kits.

Customization options range from front winches and heaters to various safety and comfort features like rear ROPS, extra heaters, and a variety of lighting options.

This blend of power, safety, and adaptability makes the Fat Truck 2.8 Wagon an excellent choice for sectors requiring dependable and multifaceted off-road transportation. It's perfect for contractors working on power lines, pipelines, telecommunications, and wind farms, as well as first responders performing search and rescue operations in difficult and/or inaccessible territory.



What is the Fat Truck 2.8 Pickup?

The Fat Truck 2.8 Pickup is the next generation of its predecessor, the 2.8P, boasting an impressive 11% increase in power and over 40 new and enhanced features. It has undergone significant improvements, including impact-resistant windshields for enhanced safety, a upgraded ergonomic and quieter cab, and the addition of Power Take Off capabilities.

It has a payload capacity of 2200 lbs. and offers seating for two, with an option to add six more seats. The vehicle can achieve speeds of up to 25 mph on land and 3.1 mph on water, demonstrating remarkable versatility. Its capability to handle steep inclines and sidehills, along with a zero-degree turning radius, makes it exceptionally maneuverable in diverse conditions.

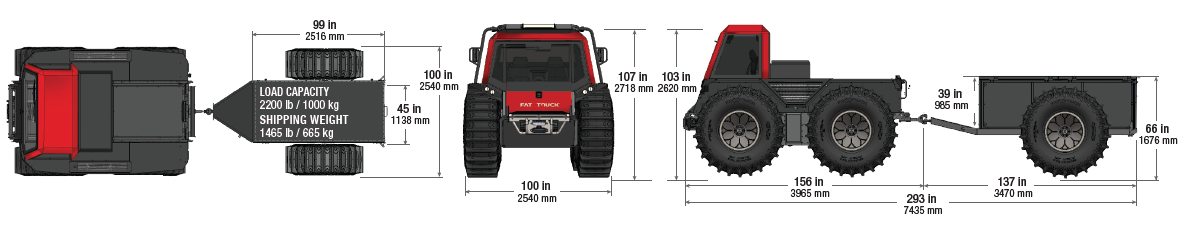

2.8PFat Truck 2.8 Pickup Features

Engine and Performance

Powered by a Caterpillar C2.2 Turbo diesel engine, the Fat Truck 2.8 Pickup delivers 74 horsepower at 2800 RPM and 199 lb-ft of torque at 1400 RPM. This robust performance is supported by a hydrostatic transmission with carbon fiber synchronous belts, ensuring smooth handling across various terrains.

Safety and Control

The vehicle adheres to ISO 3471 ROPS and EPA Stage V standards, featuring an automatic safety brake for enhanced security. Control is facilitated by a microprocessor-managed joystick and a color display, simplifying operation and increasing efficiency.

Design and Customization

With dimensions of 103 inches in height, 146.5 inches in length, and 100 inches in width, and a ground clearance of 20.7 inches, the Fat Truck 2.8 Pickup is designed to tackle rugged landscapes. Standard equipment includes lockable doors, operator seats with safety belts, comprehensive lighting, and essential safety gear.

The vehicle offers customization options like air conditioning, winches, heaters, and various safety and comfort features to cater to specific industry needs.

The Fat Truck 2.8 Pickup, with its combination of power, safety, and adaptability, is an ideal choice for industries that require reliable and versatile off-road transportation, including construction, agriculture, and emergency services.

New call-to-action

What is the new Fat Truck 8x8 Hauler?

The new Fat Truck 8x8 Hauler is a cutting-edge off-road utility vehicle, specifically designed for transporting heavy loads across challenging terrains. It features a dual-car system, with the front car having a payload capacity of 1000 lb. and the rear car capable of carrying up to 4000 lbs.

This vehicle can accommodate up to four passengers in the front and achieves a maximum speed of 25 mph on land and 3.1 mph on water. Its ability to handle steep inclines and sidehills, combined with a 24 ft turning radius, ensures remarkable maneuverability.

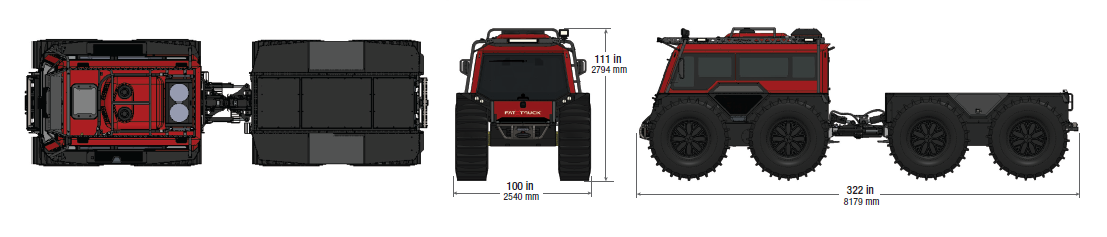

8.8HFat Truck 8x8 Hauler Features

Engine and Performance

The Hauler is powered by a Cummins F3.8 Turbo diesel engine, compliant with EPA Tier 4 final and EURO Stage V emission standards. It delivers a potent 173 horsepower at 2500 RPM and a torque of 457 lb-ft at 1500 RPM. The vehicle's hydrostatic powertrain, equipped with eight hydrostatic motors, ensures robust performance across all types of terrain.

Safety and Control

Safety is paramount in the Fat Truck 8x8 Hauler, meeting ISO 3471 ROPS standards and featuring an automatic safety brake system. Control is made easy with a microprocessor, joystick steering, and a rugged touchscreen display.

Design and Customization

With dimensions of 111 inches in height, 322 inches in length, and 100 inches in width, and a ground clearance of 25 inches, the Hauler is built to tackle the toughest landscapes. Standard equipment includes lockable doors, LED lighting, a backup camera system, and safety essentials like fire extinguishers and first aid kits.

Customization options include air conditioning, winches, heaters, and various safety and comfort features, catering to specific industry needs.

The Fat Truck 8x8 Hauler's combination of power, safety, and adaptability makes it an excellent choice for sectors that require heavy-duty off-road transportation, such as mining, construction, and large-scale agriculture

What is the new Fat Truck 8x8 Wagon?

The new Fat Truck 8x8 Wagon is an advanced off-road utility vehicle designed for transporting large groups and materials across difficult terrains. It features a significant payload capacity with 1000 lbs. in the front car and 3000 lbs. in the rear car.

Capable of carrying up to 16 passengers (4 in the front and 12 in the rear), it achieves a maximum speed of 25 mph on land and 3.1 mph on water. Its impressive maneuverability is evident in its ability to tackle steep inclines and sidehills and a 24 ft turning radius.

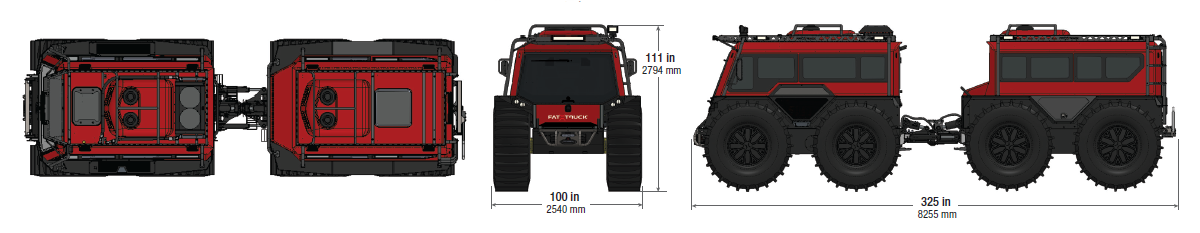

8.8W
Fat Truck 8x8 Wagon Features

Engine and Performance

The Wagon is equipped with a Cummins F3.8 Turbo diesel engine, adhering to EPA Tier 4 final and EURO Stage V emission standards. It boasts 173 horsepower at 2500 RPM and a torque of 457 lb-ft at 1500 RPM. The hydrostatic powertrain with eight hydrostatic motors ensures strong performance in challenging environments.

Safety and Control

Safety is a key focus, with the vehicle meeting ISO 3471 ROPS standards and incorporating an automatic safety brake. The controls are managed via a microprocessor, joystick steering, and a rugged touchscreen, offering easy and reliable operation.

Design and Customization

Its imposing stature with a height of 111 inches, overall length of 325 inches, and width of 100 inches, combined with a ground clearance of 25 inches, allows it to traverse rugged landscapes with ease. It comes with a variety of standard equipment, including lockable doors, LED lighting, and a comprehensive safety kit.

Customization options like air conditioning, various seating configurations, and heaters are available to tailor the vehicle to specific needs.

The Fat Truck 8x8 Wagon's blend of power, safety, and adaptability positions it as an ideal vehicle for sectors requiring extensive off-road transport capabilities, such as emergency response, mining, and large-scale construction projects



Are you looking for a Fat Truck for your next project?

No matter the size or scope of the job or the remoteness of your work location, you can rely on Fat Truck’s industrial off-road utility vehicles to get the job done right.

U.S Aqua also offers a wide range of towing and truck bed options, and we can deliver your new Fat Truck to your location with ease.

Buy or rent a Fat Truck today!
